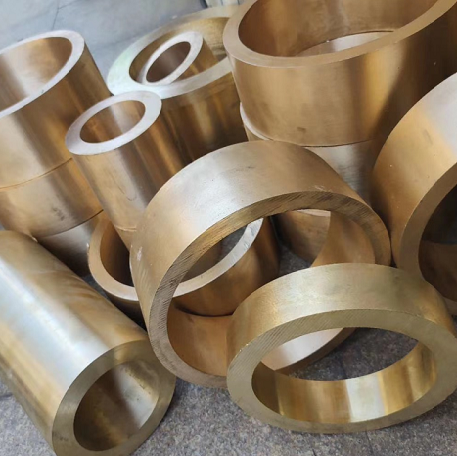

C95400 Aluminum Bronze Pipe

Short Description:

Standards

· Bronze C95400: Aluminum Bronze

· Solids: 1/2" to 9" OD

· Tubes: 1 1/8" to 9" OD

· Rectangles: Up to 15" wide

· Type: Brass, bronze or copper alloy

· Shape/Form: Semi-finished; mill stock or near net shapes; anode; bar stock; billet/bloom; squares; hex; plate; profile or structural shape; flats/rectangular bar

· Benefits: Higher strength, tarnish resistant, good anti-frictional characteristics, low rates of scaling and corrosion in atmospheric conditions, resistant to corrosion in sea water, low oxidation rates at higher temperatures, low reactivity with sulfurous compounds and other exhaust products of combustion, copper component of alloy prevents colonization by marine organisms including algae, lichens barnacles and mussels

Similar or Equivalent Specification

CDA

ASTM

ASARCON

SAE

AMS

Federal

Ingot#

Military

Other Desc

C95400

B505-08


J461


QQ-C-390B TYPE III

415

MIL-B-16033 CLASS 3

ALUMINUM BRONZE 9C




J462


QQ-B-671 CLASS 3




Chemical Composition (according to ASTM B505-08)

Cu%

Sn%

Pb%

Zn%

Fe%

Ni%

Sb%

P%

S%

Al%

Mn%

Si%

Bi%

Note: Single values represent maximums.


83.00-87.00

N/A

N/A

N/A

3.00-5.00

1.50

N/A

N/A

N/A

10.0-11.50

0.50

N/A

N/A

Mechanical Properties (according to ASTM B505-08)

Tensile Strength (min)

Yield Strength (at .5% extention under load min)

Elongation (in 2in. or 50mm min, %)

Brinell Hardness (typical Bhn - 3000kg)

Remarks

Ksi

MPa

Ksi

MPa




85


32


12

170


Machinability

Alloy

Rating

Density

C95400

60

0.269

Physical Properties


US Customary

Metric

· * 50 Temper, Field Strength 16 kA/m

· ** As Cast, Field Strength 16 kA/m

Melting Point - Liquidus

1900 F

1038 C

Melting Point - Solidus

1880 F

1027 C

Density

0.269 lb/in3 at 68 F

7.45 gm/cm3 @ 20 C

Specific Gravity

7.450

7.45

Electrical Resistivity

80.20 ohms-cmil/ft @ 68 F

13.33 microhm-cm @ 20 C

Electrical Conductivity

13% IACS

0.075 MegaSiemens/cm @ 20 C

Thermal Conductivity

33.90 Btu · ft/(hr · ft2·°F)at 68F

58.7 W/m · °K at 20 C

Coefficient of Thermal Expansion

9 ·10-6 per oF (68-392 F)

16.2 ·10-6 per °C (20-200 C)

Specific Heat Capacity

0.10 Btu/lb/°F at 68 F

419.0 J/kg · °K at 293 K

Modulas of Elasticity in Tension

15500 ksi

107000 MPa

Magnetic Permeability*

1.20

1.2

Magnetic Permeability**

1.270

1.27

Fabrication Properties

Joining Technique

Suitability

Soldering

Good

Brazing

Good

Oxyacetylene Welding

Not Recommended

Gas Shielded Arc Welding

Good

Coated Metal Arc Welding

Good

Thermal Properties

Treatment

Temp./Time - US

Temp./Time - SI

Stress Temperature

600

316

Solution Minimum

1600

872

Solution Maximum

1675

914

Solution Time

1.0

Solution Medium

Water

Precipitation Value



Precipitation Time


Precipitation Medium

Water

Annealing Minimum

1150

622

Annealing Maximum

1225

663

Annealing Time

1.0

Hot Works Minimum



Hot Works Maximum
